Nengo example: Parsing simple commands

This example is a simplified version of the language parsing model presented in Stewart & Eliasmith, 2013. Please refer to that paper for the high-level details.

# Setup for the notebook
import matplotlib.pyplot as plt
%matplotlib inline

import nengo
%load_ext nengo.ipynb
from nengo import spa

<IPython.core.display.Javascript at 0x7fdbac134150>

Step 1: Create the model

# Number of dimensions for the SPs
dimensions = 64

# Make a model object with the SPA network
model = spa.SPA(label='Parser')

with model:
    # Specify the modules to be used
    model.vision = spa.Buffer(dimensions=dimensions, neurons_per_dimension=100)
    model.phrase = spa.Buffer(dimensions=dimensions, neurons_per_dimension=100)
    model.motor = spa.Buffer(dimensions=dimensions, neurons_per_dimension=100)
    model.noun = spa.Memory(dimensions=dimensions, neurons_per_dimension=100)
    model.verb = spa.Memory(dimensions=dimensions, neurons_per_dimension=100)

    # Specify the action mapping
    actions = spa.Actions(
        'dot(vision, WRITE) --> verb=vision',
        'dot(vision, ONE+TWO+THREE) --> noun=vision',
        '0.5*(dot(NONE-WRITE-ONE-TWO-THREE, vision) '
        '+ dot(phrase, WRITE*VERB)) '
        '--> motor=phrase*~NOUN',
    )
    cortical_actions = spa.Actions(
            'phrase=noun*NOUN + verb*VERB',
    )
    model.bg = spa.BasalGanglia(actions=actions)
    model.thal = spa.Thalamus(model.bg)
    model.cortical = spa.Cortical(actions=cortical_actions)

Step 2: Provide the input

def input_vision(t):
    sequence = 'WRITE ONE NONE WRITE TWO NONE THREE WRITE NONE'.split()
    index = int(t / 0.5) % len(sequence)
    return sequence[index]

with model:
     model.input = spa.Input(vision=input_vision)

Step 3: Probe the output

with model:
    vision = nengo.Probe(model.vision.state.output, synapse=0.03)
    phrase = nengo.Probe(model.phrase.state.output, synapse=0.03)
    motor = nengo.Probe(model.motor.state.output, synapse=0.03)
    noun = nengo.Probe(model.noun.state.output, synapse=0.03)
    verb = nengo.Probe(model.verb.state.output, synapse=0.03)
    actions = nengo.Probe(model.thal.actions.output, synapse=0.01)
    utility = nengo.Probe(model.bg.input, synapse=0.01)

Step 4: Run the model

# Create the simulator object
with nengo.Simulator(model) as sim:
    # Simulate the model for 4.5 seconds
    sim.run(4.5)

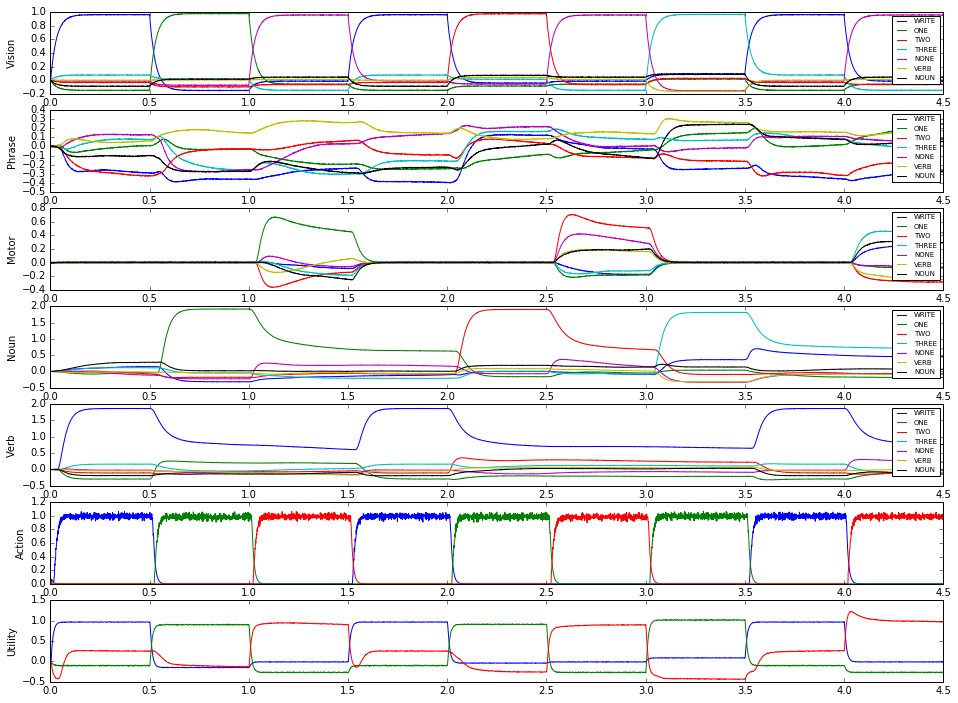

Step 5: Plot the results

fig = plt.figure(figsize=(16,12))
p1 = fig.add_subplot(7,1,1)
p1.plot(sim.trange(), model.similarity(sim.data, vision))
p1.legend(model.get_output_vocab('vision').keys, fontsize='x-small')
p1.set_ylabel('Vision')

p2 = fig.add_subplot(7,1,2)
p2.plot(sim.trange(), model.similarity(sim.data, phrase))
p2.legend(model.get_output_vocab('phrase').keys, fontsize='x-small')
p2.set_ylabel('Phrase')

p3 = fig.add_subplot(7,1,3)
p3.plot(sim.trange(), model.similarity(sim.data, motor))
p3.legend(model.get_output_vocab('motor').keys, fontsize='x-small')
p3.set_ylabel('Motor')

p4 = fig.add_subplot(7,1,4)
p4.plot(sim.trange(), model.similarity(sim.data, noun))
p4.legend(model.get_output_vocab('noun').keys, fontsize='x-small')
p4.set_ylabel('Noun')

p5 = fig.add_subplot(7,1,5)
p5.plot(sim.trange(), model.similarity(sim.data, verb))
p5.legend(model.get_output_vocab('verb').keys, fontsize='x-small')
p5.set_ylabel('Verb')

p6 = fig.add_subplot(7,1,6)
p6.plot(sim.trange(), sim.data[actions])
p6.set_ylabel('Action')

p7 = fig.add_subplot(7,1,7)
p7.plot(sim.trange(), sim.data[utility])
p7.set_ylabel('Utility')

fig.subplots_adjust(hspace=0.2)
